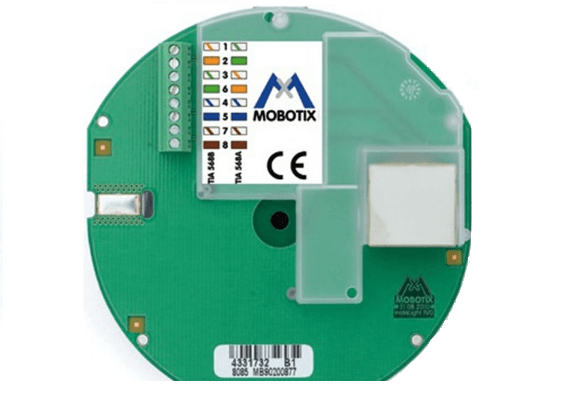

The Ethernet terminal board is used for the secure connection of the camera module via an RJ45 plug with the 8 wires of the network cable.
(Only for door stations without Mx2wire)

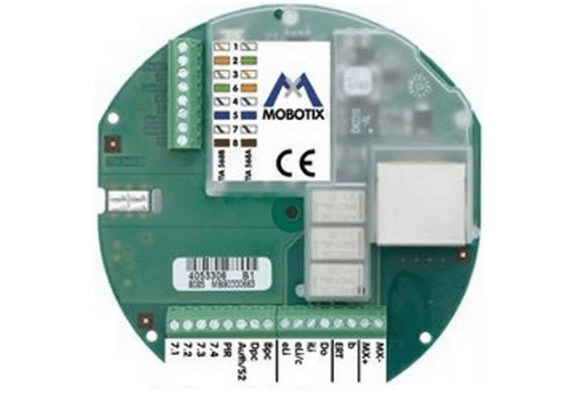

Article No: MX-OPT-IO2

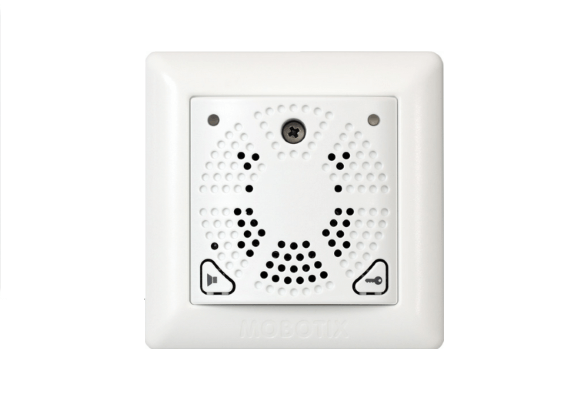

Security door opener with backup power supply for connection to a FlexMount camera S14/S15 and IP Video Door Station T25
Due to technical hardware differences, an S14/S15 that is to be used as a Door Station (with or without additional modules such as KeypadRFID, BellRFID) can only be used together with the MX-DoorMaster. The T24-DoorMaster should still be used with any new or existing T24 Door Station (T24 door camera with or without additional modules such as KeypadRFID, BellRFID).
Please note: The new MX-DoorMaster is identical to the T24-DoorMaster in terms of functionality, dimensions and appearance. The required technological adjustments are entirely restricted to the circuit board.
Article No: MX-Door2-INT-PW, In-wall version
Article No: MX-Door2-INT-ON-PW, On-wall version
